DRAWN CUP NEEDLE

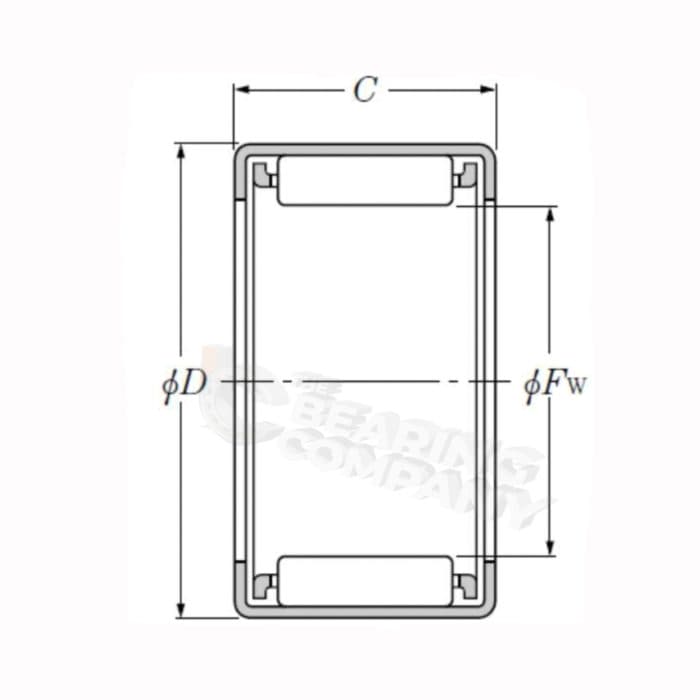

HMK1820 DRAWN CUP NEEDLE ROLLER BEARING NTN 18x25x20mm - Image 2

HMK1820 DRAWN CUP NEEDLE ROLLER BEARING NTN 18x25x20mm

SKU: HMK1820_NTN

£8.62 ex. VAT

In Stock

HMK1820 NTN DRAWN CUP NEEDLE ROLLER BEARING 18mmx25mmx20mm
This bearing type is composed of an outer ring drawn from a thin steel plate by precision drawing, needle rollers and a cage assembled in the outer ring after the raceway surface thereof was hardened (A bearing marked with a suffix including “M” is subjected to heat-treatment after assembly.). Of the bearings with outer ring, this bearing type is a bearing with the smallest section height which enables space-saving and cost-saving. Usually design is so made as to use a shaft as the
direct raceway surface without using inner ring. The outer ring of this bearing type is of such a construction that the needle rollers and the cage are not separated from one another, so that the bearing is only press-fitted in a rigid housing with proper fit torque. Thus, this bearing type needs no snap ring, etc. to fix itself in axial direction and, in addition, is easy to handle

Technical Specification

Weight 0.027 kg
Inside Diameter

18mm
Outside Diameter

25mm
Width

20mm
Brand

NTN
